Chihiros Dosing Flow Adapter

Chihiros Dosing Flow Adapter

Anyone who uses a dosing pump knows the challenge: loose tubes hanging over the edge of the aquarium, local buildup of liquids, and the risk of nutrient hotspots that can stimulate algae growth. With the Chihiros Dosing Flow Adapter, you solve this in one go. This adapter ensures that plant nutrients or other additives are mixed directly into the outflow hose of your external filter.

The result? Liquids are immediately carried by your filter’s water flow and evenly distributed throughout the entire tank. No more unsightly tubes hanging over the edge, resulting in a much cleaner and more streamlined aquarium setup.

Features of the Chihiros Dosing Flow Adapter

• Sleek design: Keeps the edge of your aquarium free from equipment and tubing.
• Compatible with Chihiros dosing systems: fully compatible with both the Chihiros 2-channel and 4-channel dosing pumps.
• Safe to use: Equipped with built-in check valves that prevent water backflow, even when no dosing tube is connected. This allows you to use, for example, only 2 of the available ports.
• Optimal mixing: Helps prevent local nutrient buildup.
• Easy installation: The adapter is simply placed in the outflow hose (12/16 mm) of your external filter. The dosing ports have a standard connection for 2/4 mm dosing tubes.
• Transparent material: Allows you to easily check if the flow is running properly or if contamination is occurring.

Helpful tips for installation and use

To get the most out of your dosing system, here are a few practical tips:

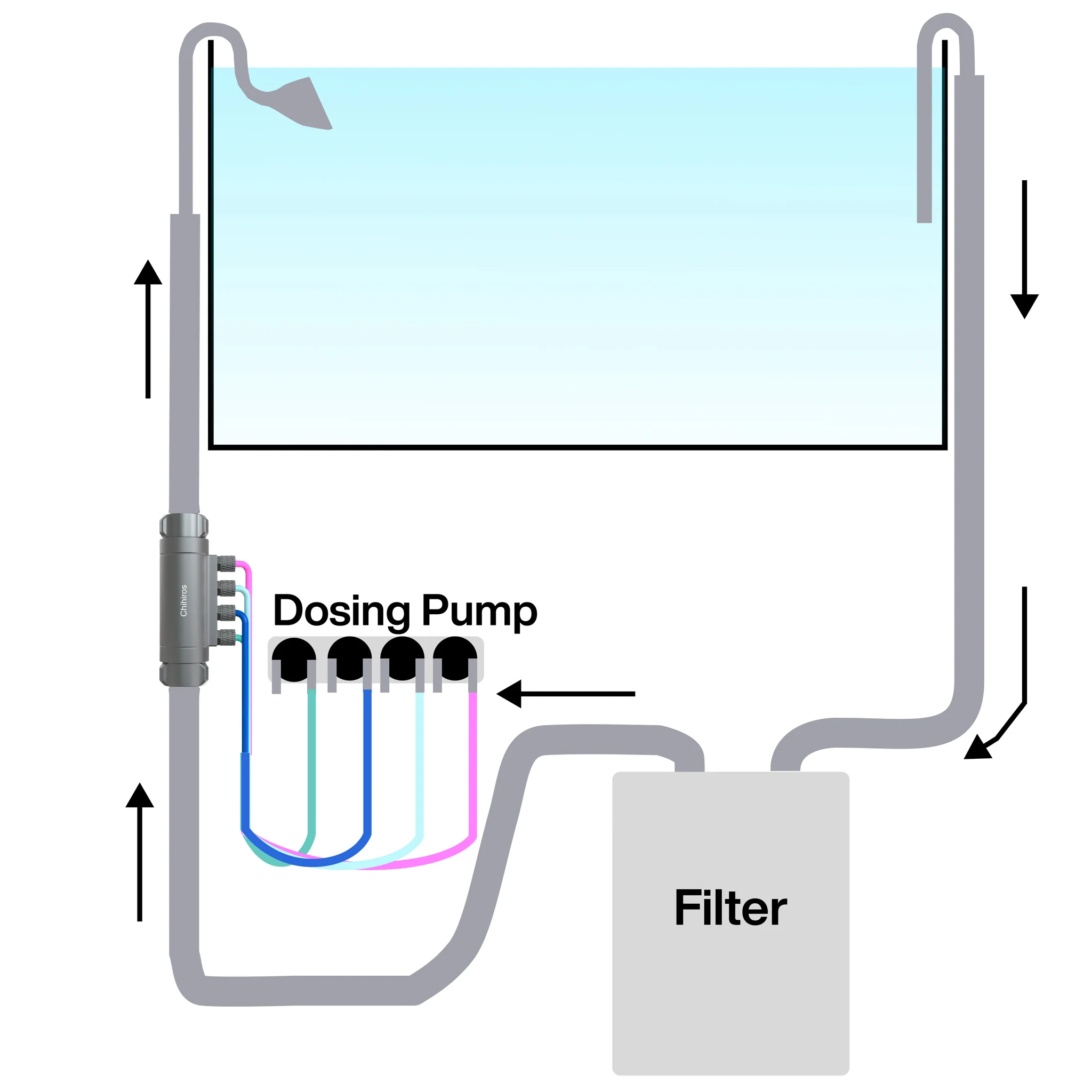

• Placement: Always install the adapter in the outflow hose (the hose running from the filter to the aquarium). If installed in the inflow hose, nutrients may get trapped in the filter media and be less effective in the aquarium.
• Maintenance: Rinse the adapter occasionally during regular cleaning of your filter hoses. Since plant nutrients can thicken over time, this helps prevent the narrow dosing channel from clogging.
• Air-tight: Make sure the adapter is firmly secured with hose clamps to prevent leaks or air intake.

Important to know

• Not compatible with the Chihiros Inline Heater: the Dosing Flow Adapter cannot be directly connected to the Chihiros Inline Heater.
• Avoid use with acidic liquids: the material of the adapter is sensitive to acids (pH below 5.5). To prevent corrosion, fertilizers and liquids with a low pH value should be avoided.

The Chihiros Dosing Flow Adapter is a smart solution to keep your aquascape clean and to distribute nutrients evenly throughout the aquarium.
